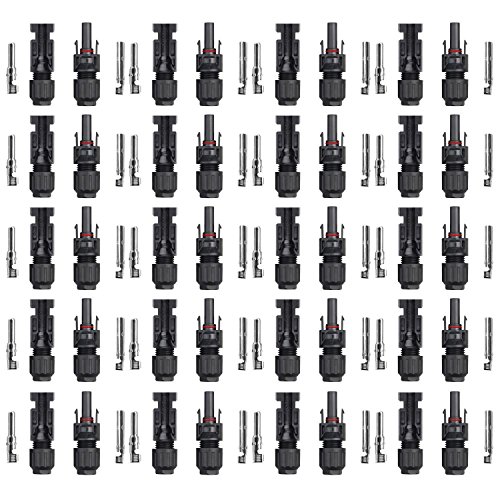

Sun YOBA 20 Pairs MC4 Connector Male Female Safety Seal Ring Waterproof Solar Panel Cable Connectors

Description

Specification:
Rated current: 30A (2.5 4.0mm2)
Degree of protection: IP2 * / IP67
Rated voltage: 1000V DC
Flammability rating: UL94 V0
Test voltage: 6000V (50Hz 1min)
Safety: II
Overvoltage category / Pollution Index: CATIII / 2
Adapter Wire: OD4.5 7.0 (2.5 4.0mm2)
Connector contact resistance: 0.5m¦¸
Insertion / Extraction Force: less or equal to 50N / equal or greater than 50N
Connector conductor material: copper tin
Connection: Crimp
Connector Insulation material: PPO or PBT
Operating temperature range: 40 ~ +90 centigrade

Package include: 20 x male solar panel cable connector
20 x female solar panel cable connector
Rated current 30A 25 40mm2
Degree of protection IP2 IP67
Rated voltage 1000V DC
Flammability rating UL94 V0
Test voltage 6000V 50Hz 1min


Manufacturer: Sun YOBA;
Model: ;
MPN: 4XF0006 A;
Part Number: 4XF0006 A;
UPC: ;
Color: 20 Pairs Mc4;
Brand: Sun YOBA;
Department: ;
Size: ;
Warranty: ;
Label: Sun YOBA;
Amazon Sale Rank: 91359;
