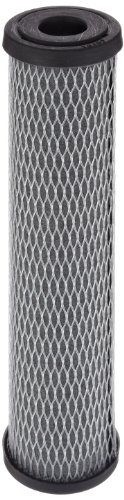

Pentek C1 Carbon Filter Cartridge 9-3 4 x 2-1 2 5 Micron

This Pentek C1 carbon filter cartridge reduces fine sediment and chlorine taste and odor in residential drinking water. It has a nominal (85%) filtration rating of 5 microns and will reduce free available chlorine (FAC) at 2 parts per million (ppm) by at least 75% in up to 2500 gallons at a recommended flow rate of 1 gallon per minute (gpm). This cartridge is made of cellulose media impregnated with powdered activated carbon (PAC) reinforced by polyester backing and netting for strength and dirt holding capacity. The nitrile butadiene rubber (Buna N) gasket seals the cartridge against the housing (sold separately). The cartridge has an initial pressure drop of 4 pounds per square inch (psi) at a flow rate of 5 gpm and it operates over a temperature range of 40 to 125 degrees F (4.4 to 51.7 degrees C). This filter cartridge meets National Sanitation Foundation/American National Standards Institute (NSF/ANSI) standard 42 for quality assurance and is for use in various applications including drinking water purification laboratory water treatment and film processing among others .

Specifications

Nominal filtration rating	5 microns
Chlorine reduction capacity	2500 gallons at 1 gpm
Initial pressure drop at 5 gpm	4 psi
Operating temperature range	40 to 125 degrees F (4.4 to 51.7 degrees C)
Maximum dimensions (H x W)	9 3/4 x 2 1/2 inches (248 x 64 mm)
Materials certification	NSF/ANSI standard 42

The nominal filtration rating is for a particle removal efficiency of 85%. Chlorine reduction capacity is the minimum total amount of water for which the free available chlorine (FAC) at a concentration of 2 ppm is reduced by at least 75%.

H is height the vertical distance from lowest to highest point; W is width the horizontal distance from left to right; D is depth the horizontal distance from front to back.

Water filters remove undesirable particles chemicals and microorganisms from water by means of a semipermeable barrier adsorption or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles materials that block microbes or adsorb unwanted chemicals or substances that cause a chemical change such as acid neutralization. For most residential commercial and industrial applications water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked the percentage of particles or microorganisms that are removed the downstream concentration of unwanted chemicals the maximum flow rate and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications including drinking water purification swimming pools industrial processes and irrigation among others.

Pentair manufactures industrial commercial and residential water filtration components and systems. The company founded in 1966 and headquartered in Minneapolis MN meets International Organization for Standardization (ISO) standards 9001 and 14001 for quality assurance.
